Best quality 1000base-Sx - 100BASE-LX SFP 1310nm 10km Hi-Optel HSFP-03-3312S-22F module – Hi-optel Detail:
Features
● Multi-Source Package with Duplex LC Connector
● Up to 155Mb/s Data Links
● Up to 10km on 9/125µm SMF
● Single +3.3V Power Supply
● Hot-Pluggable
● Compliant with Specifications for ITU-T G.957, G.958
● Eye Safety Designed to Meet Laser Class1, Compliant with IEC60825
● Monitoring Interface Compliant with SFF-8472
● Compliant with Bellcore TA-NWT-000983
● Operating Case Temperature
Standard(X=1):0℃~+70℃
Industrial(X=2):-40℃~+85℃
● RoHS Compliant Products
Receiver
| Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
| Date Rate |
B |
- |
155 |
- |
Mb/s |
| Receive Sensitivity*Note3 |
Pmin |
- |
- |
-28 |
dBm |
| Maximum Input Power |
Pmax |
-8 |
- |
- |
dBm |
| Signal Detect Threshold-De-Assert |
SD |
|
|
-30 |
dBm |
| Signal Detect Threshold-Assert |
SA |
-45 |
|
|
dBm |
| Hysteresis |
- |
|
2.0 |
|
dB |
| Supply Current |
ICC |
- |
60 |
120 |
mA |
| Operating Wavelength |
λc |
1100 |
- |
1620 |
nm |
| Alarm Output Interface |
LVTTL |
||||
Note1: Measured with 9/125µm single-mode fiber.
Note2:Filtered, measured with a PRBS 2^23-1 test pattern @155Mbps.
Note3: Measured with ER=8.2dB, 2^23-1 PRBS data pattern, BER≤1E-12.
Absolute Maximum Ratings: (TC=25℃)
| Parameter |
Symbol |
Min. |
Max. |
Unit |
|
| Storage Temperature |
TST |
-40 |
+85 |
℃ |
|
| Operating Temperature |
X=1 |
TIP |
0 |
+70 |
℃ |
|
X=2 |
-40 |
+85 |
|||
| Input Voltage |
TCC |
0 |
+3.6 |
V |
|
Recommended Operating Environment
| Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
|
Supply Voltage |
VCC |
+3.0 |
+3.3 |
+3.6 |
V |
|
| Operating Temperature |
X=1 |
TOP |
0 |
- |
+70 |
℃ |
|
X=2 |
-40 |
- |
+85 |
|||
Timing Characteristics
| Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
TX_DISABLE Assert Time |
t_off |
|
3 |
10 |
usec |
|
TX_DISABLE Negate Time |
t_on | 0.5 | 1 | msec | |
|
Time to Initialize Include Reset of TX_FAULT |
t_int | 30 | 300 | msec | |
|
TX_FAULT from Fault to Assertion |
t_fault |
|
20 |
100 |
usec |
|
TX_DISBEL Time to Start Reset |
t_reset |
10 |
|
|
usec |
|
Receiver Loss of Signal Assert Time (Off to On) |
Ta,RX_LOS |
|
|
100 |
usec |
|
Receiver Loss of Signal Assert Time (On to Off) |
Td,RX_LOS |
|
|
100 |
usec |

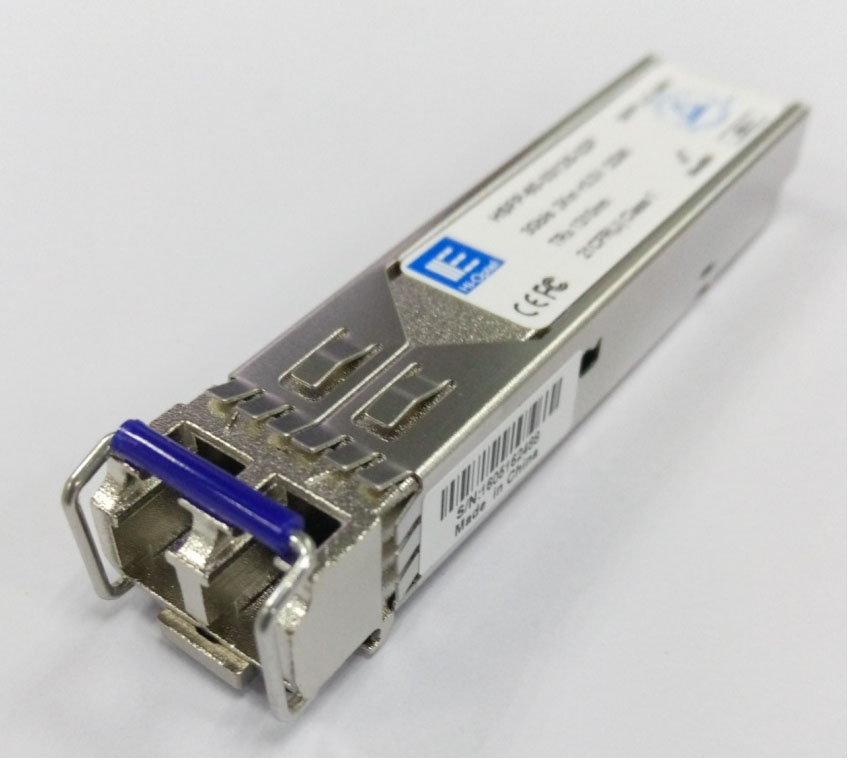

Product detail pictures:
