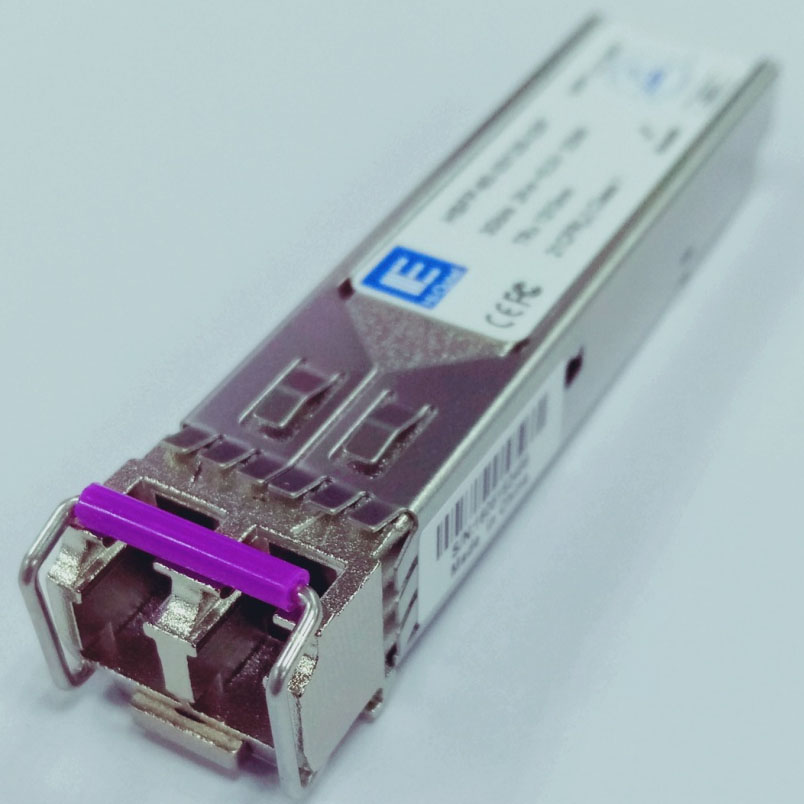

2.5GBASE-LR 1310nm 10km Hi-Optel HSFP-48-2322S-22F module

Short Description:

Multi-Source Package with Duplex LC Connector

Up to 2.5Gb/s Data Links

Up to 15km on 9/125µm SMF

Single +3.3V Power Supply

Hot-Pluggable

Compliant with Specifications for ITU-T G.957, G.958

Eye Safety Designed to Meet Laser Class1, Compliant with IEC60825

Monitoring Interface Compliant with SFF-8472


Product Detail

Product Tags

Features

● Multi-Source Package with Duplex LC Connector
● Up to 2.5Gb/s Data Links
● Up to 15km on 9/125µm SMF
● Single +3.3V Power Supply
● Hot-Pluggable
● Compliant with Specifications for ITU-T G.957, G.958
● Eye Safety Designed to Meet Laser Class1, Compliant with IEC60825
● Monitoring Interface Compliant with SFF-8472
● Compliant with Bellcore TA-NWT-000983
● Operating Case Temperature -40℃~+85℃
● RoHS Compliant Products

2.5GBASE-LR

Applications

● STM-16
● Fiber channel
● Metro/Access Networks
● Other Optical Links

Specification

Electrical and Optical Characteristics: (Condition: Ta=TOP)

Parameter

Symbol

Min.

Typical

Max.

Unit

Transmitter Differential Input Volt

+/-TX_DAT

200



2400

mV p-p

Supply Current

ICC



160

350

mA

Tx_Disable Input Voltage – Low

VIL

0



0.8

V

Tx_Disable Input Voltage – High

VIH

2.0



Vcc

V

Tx_Fault Output Voltage – Low

VOL

0



0.8

V

Tx_Fault Output Voltage – High

VOH

2.0



Vcc

V

Receiver Differential Output Volt

+/-RX_DAT

400



1400

mV p-p

Rx_LOS Output Voltage- Low

VOL

0



0.8

V

Rx_LOS Output Voltage- High

VOH

2.0



Vcc

V

Transmitter:

Parameter

Symbol

Min.

Typical

Max.

Unit

Data Rate

B

-

2.5

-

Gb/s

Centre Wavelength

λc

1260

1310

1360

nm

Output Spectral Width

△λ(-20dB)

-

-

1

nm

Parameter

Symbol

Min.

Typical

Max.

Unit

Side Mode Suppression Ratio

SMSR

30





dB

Average Output Power*Note1

Po

-5

-

0

dBm

Extinction Ratio*Note2

E.R.

8.2

-

-

dB

Supply Current

ICC

-

100

230

mA

Rise/Fall Time(20%~80%)

tr/tf

-

-

150

ps

Average Output Power@TX_DISABLE

Po_dis





-45

dBm

Output Optical Eye

Compliant with ITU-T G.957

Receiver:

Parameter

Symbol

Min.

Typical

Max.

Unit

Date Rate

B

-

2.5

-

Gb/s

Receive Sensitivity*Note3

Pmin

-

-

-18

dBm

Maximum Input Power

Pmax

0

-

-

dBm

Signal Detect Threshold-De-Assert

SD





-20

dBm

Signal Detect Threshold-Assert

SA

-35





dBm

Hysteresis

-



2.0



dB

Return Loss

RL

12

-

-

dB

Supply Current

ICC

-

60

120

mA

Operating Wavelength

λc

1100

-

1620

nm

Alarm Output Interface

LVTTL

Note1: Measured with 9/125µm single-mode fiber.
Note2: Filtered, measured with a PRBS 2^23-1 test pattern @2.5Gbps.
Note3: Measured with ER=8.2dB, 2^23-1 PRBS data pattern, BER≤1E-12.

Absolute Maximum Ratings: (TC=25℃)

Parameter

Symbol

Min.

Max.

Unit

Storage Temperature

TST

-40

+85

Operating Temperature

X=1

TIP

0

+70

X=2

-40

+85

Input Voltage

TCC

0

+3.6

V

Recommended Operating Environment:

Parameter

Symbol

Min.

Typical

Max.

Unit

Supply Voltage

VCC

+3.0

+3.3

+3.6

V

Operating Temperature

X=1

TOP

0

-

+70

X=2

-40

-

+85

Timing Characteristics

Parameter

Symbol

Min.

Typical

Max.

Unit

TX_DISABLE Assert Time

t_off



3

10

usec

TX_DISABLE Negate Time

t_on   0.5 1 msec

Time to Initialize Include Reset of TX_FAULT

t_int   30 300 msec

TX_FAULT from Fault to Assertion

t_fault



20

100

usec

TX_DISBEL Time to Start Reset

t_reset

10



usec

Receiver Loss of Signal Assert Time (Off to On)

Ta,RX_LOS



100

usec

Receiver Loss of Signal Assert Time (On to Off)

Td,RX_LOS



100

usec

Regulatory Compliance

Feature Standard Performance
Electrostatic Discharge(ESD)  to the Electrical Pins MIL-STD-883E

Method 3015.7

Class 1(>500 V)
Electrostatic Discharge(ESD)

To the Duplex Receptacle

IEC61000-4-2 Class 2(>4000V)
Electromagnetic    Interference (EMI) FCC Part 15 Class B Compatible with standards
Immunity IEC61000-4-3 Compatible with standards
Laser eye safety FDA21CFR1040.10and1040.11

EN60950, EN (IEC) 60825-1,2

Compatible with Class I laser product
Component Recognition UL and CE Compatible with standards
ROHS ROHS6 Compatible with standards
