1000BASE-LX SFP 1310nm 10km Hi-Optel HSFP-24-3312S-22F module

Short Description:

Gigabit Ethernet

1x Fiber Channel

Switch to Switch Interface

Router/Server Interface

Other Optical Links


Product Detail

Product Tags

Features

● Multi-Source Package with Duplex LC Connector
● Up to 1.25Gb/s Data Links
● Up to 20km on 9/125µm SMF
● Single +3.3V Power Supply
● Hot-Pluggable
● Compliant with Specifications for ITU-T G.957, G.958
● Eye Safety Designed to Meet Laser Class1, Compliant with IEC60825
● Monitoring Interface Compliant with SFF-8472
● Compliant with Bellcore TA-NWT-000983
● Operating Case Temperature
Standard(X=1):0℃~+70℃
Industrial(X=2):-40℃~+85℃
● RoHS Compliant Products

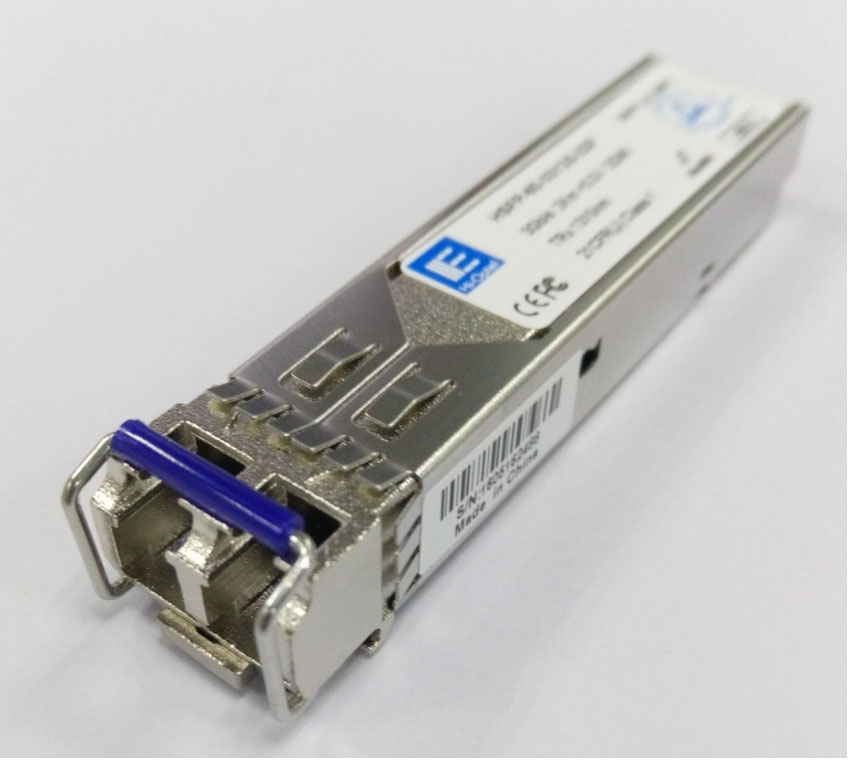

1000BASE-LX SFP 1310nm 10km Hi-Optel HSFP-24-3312S-22F module1

Specification

Absolute Maximum Ratings: (TC=25℃)

Parameter

Symbol

Min.

Max.

Unit

Storage Temperature

TST

-40

+85

Operating Temperature

X=1

TIP

0

+70

X=2

-40

+85

Input Voltage

TCC

0

+3.6

V

Recommended Operating Environment:

Parameter

Symbol

Min.

Typical

Max.

Unit

Supply Voltage

VCC

+3.0

+3.3

+3.6

V

Operating Temperature

X=1

TOP

0

-

+70

X=2

-40

-

+85

Timing Characteristics

Parameter

Symbol

Min.

Typical

Max.

Unit

TX_DISABLE Assert Time

t_off



3

10

usec

TX_DISABLE Negate Time

t_on   0.5 1 msec

Time to Initialize Include Reset of TX_FAULT

t_int   30 300 msec

TX_FAULT from Fault to Assertion

t_fault



20

100

usec

TX_DISBEL Time to Start Reset

t_reset

10



usec

Receiver Loss of Signal Assert Time (Off to On)

Ta,RX_LOS



100

usec

Receiver Loss of Signal Assert Time (On to Off)

Td,RX_LOS



100

usec

Regulatory Compliance

Feature Standard Performance
Electrostatic Discharge(ESD)  to the Electrical Pins MIL-STD-883EMethod 3015.7 Class 1(>500 V)
Electrostatic Discharge(ESD)To the Duplex Receptacle IEC61000-4-2 Class 2(>4000V)
Electromagnetic    Interference (EMI) FCC Part 15 Class B Compatible with standards
Immunity IEC61000-4-3 Compatible with standards
Laser eye safety FDA21CFR1040.10and1040.11EN60950, EN (IEC) 60825-1,2 Compatible with Class I laser product
Component Recognition UL and CE Compatible with standards
ROHS ROHS6 Compatible with standards

Note: For the latest certification information, please check with Hi-Optel.
